Design Proposal — 43601 Southerland Way, Fremont, CA
Tim McMullen
Tim McMullen
Designer & Project Consultant · DRE #02016832
43601 Southerland Way — Design Rendering
Complete Outdoor Renovation

43601 Southerland Way

Fremont, CA 94539
Designed: March 24, 2026
Scope: Front, Side & Backyard
$99,969.56
3D Design Renderings

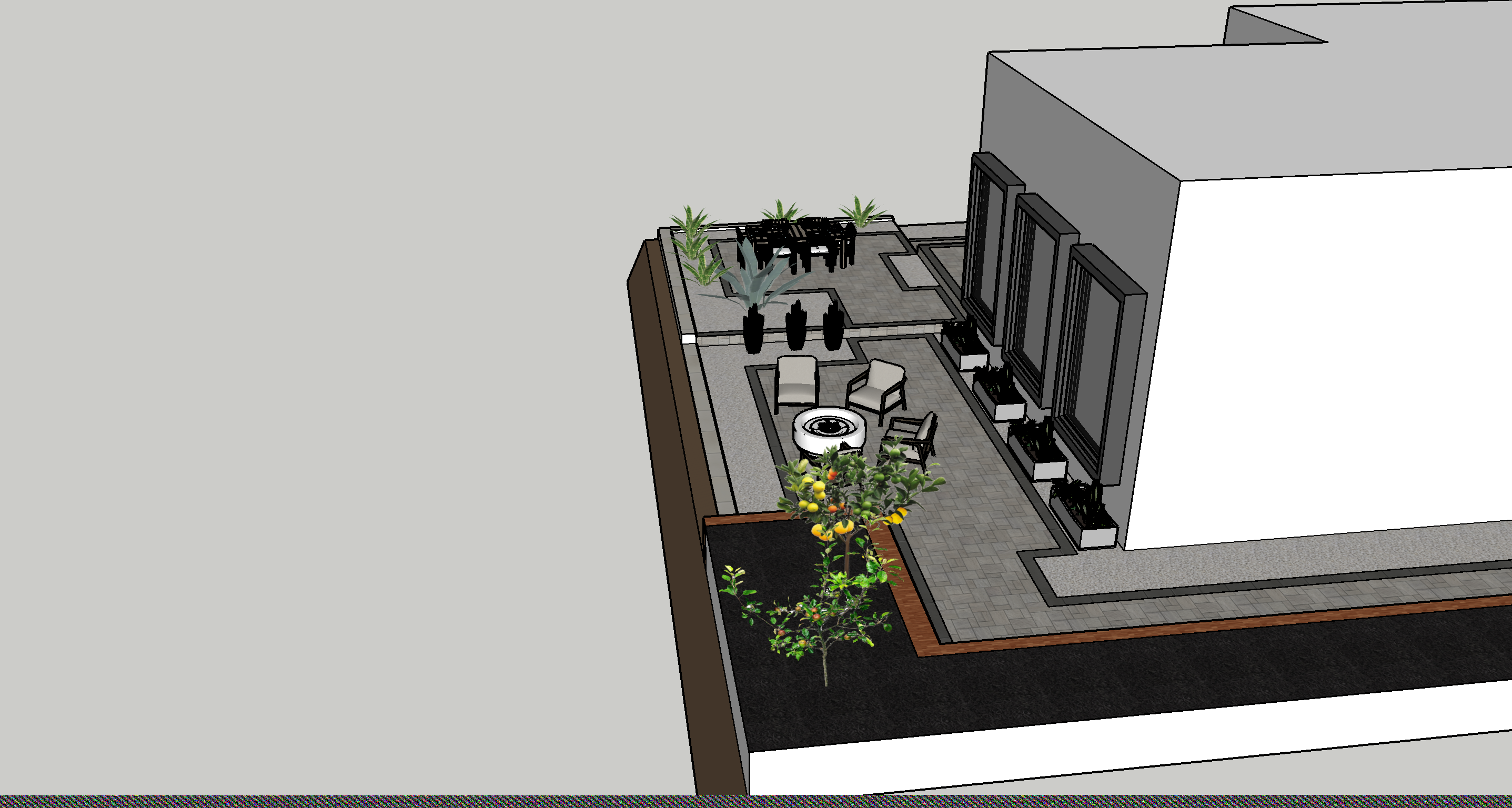

Rendering — Backyard perspective
Rendering — Front entry layout

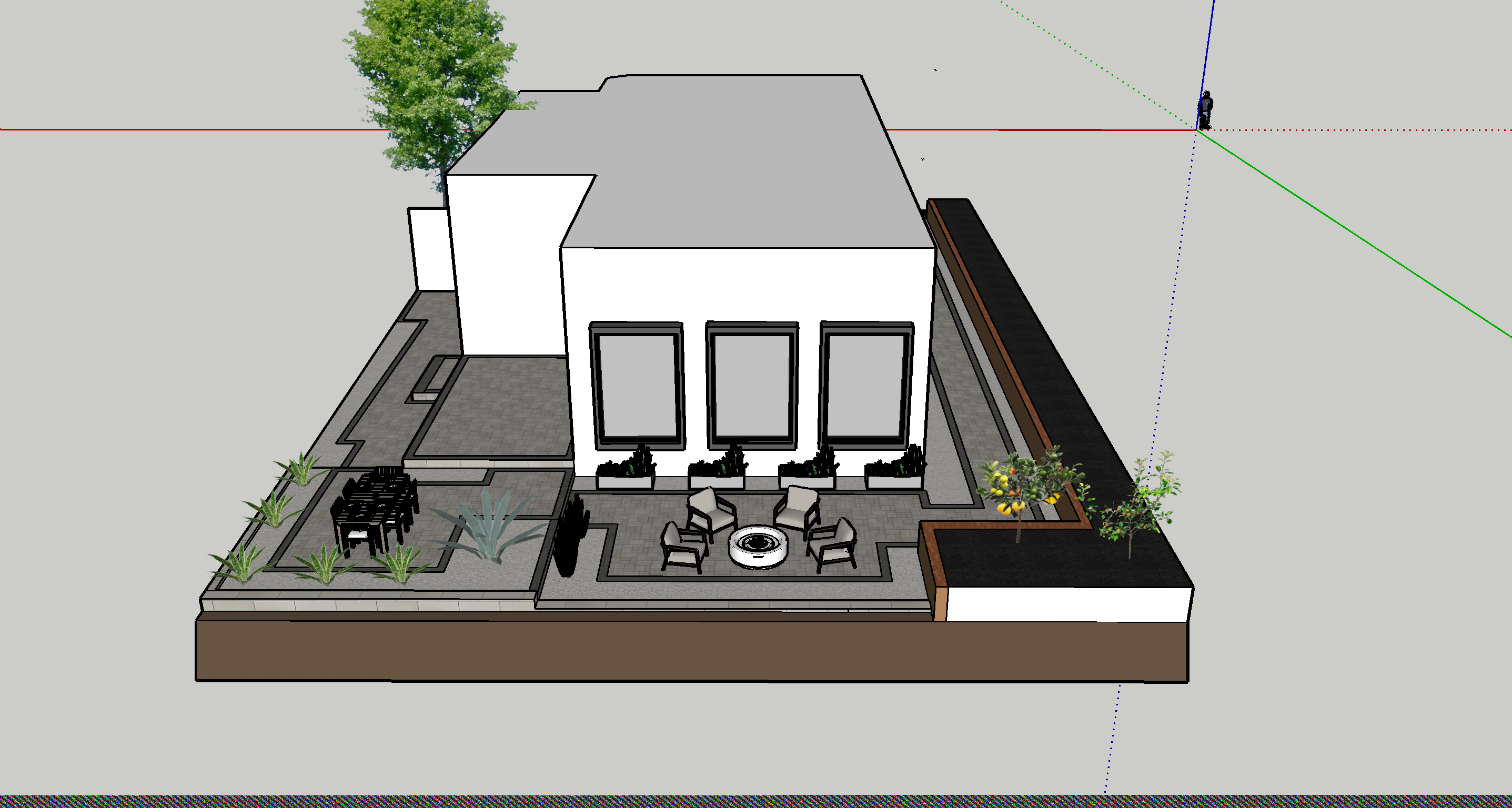

Rendering — Elevated paver landing
Rendering — Side yard path
Rendering — Aerial overview

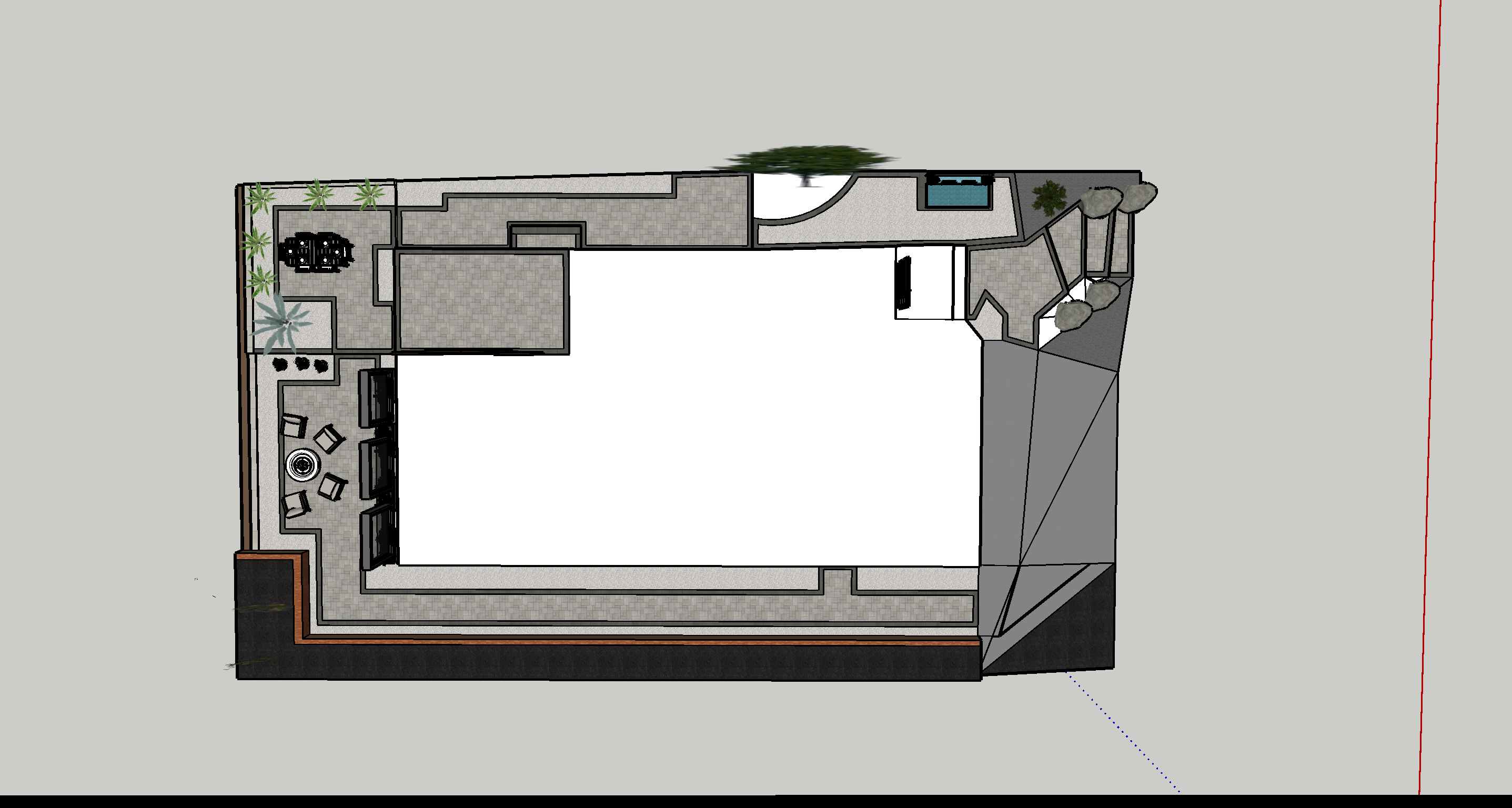

Rendering — Retaining wall detail
Project Video Walkthrough
Current Condition

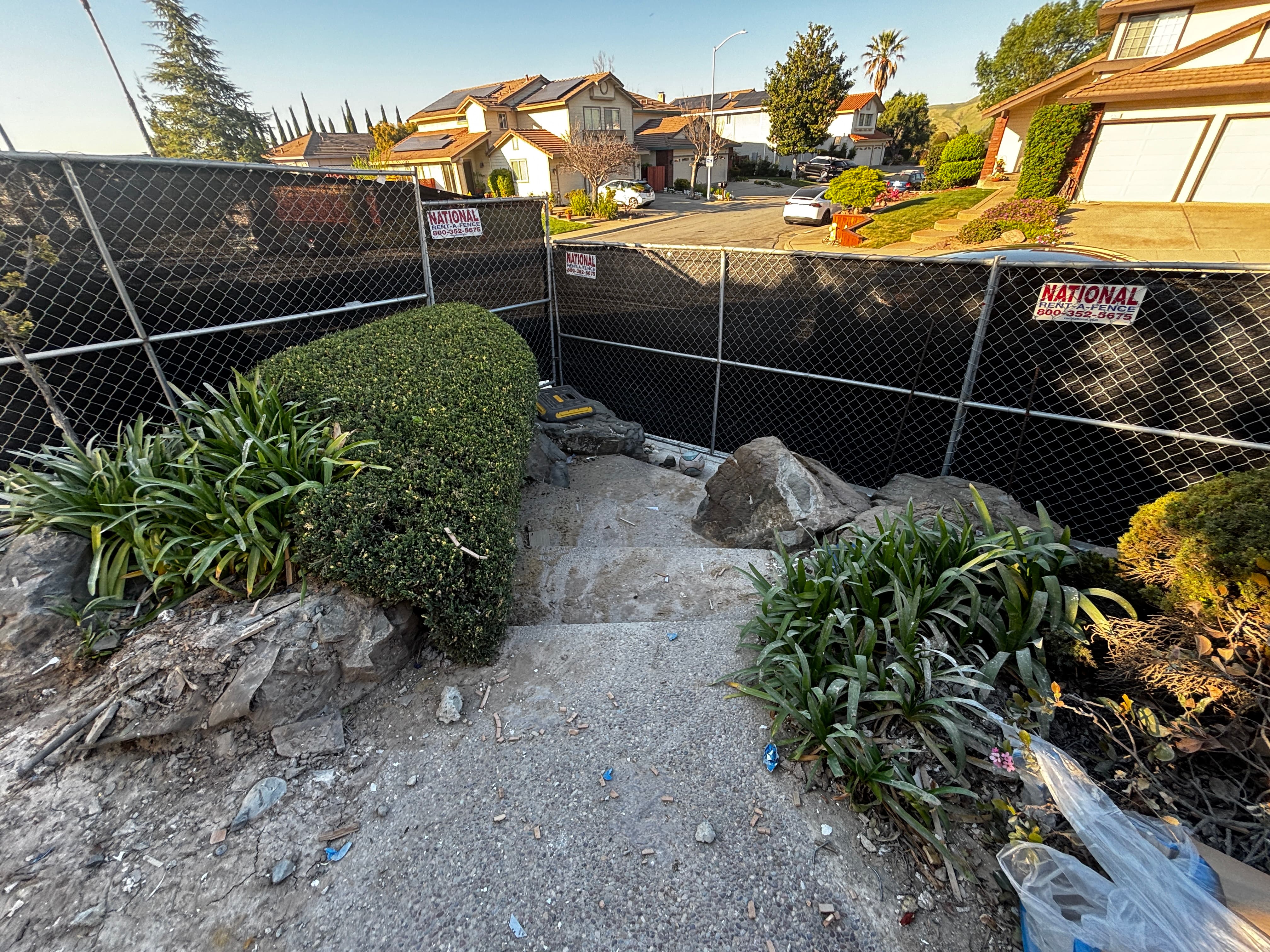

Current — 43601 Backyard overview
Backyard Overview

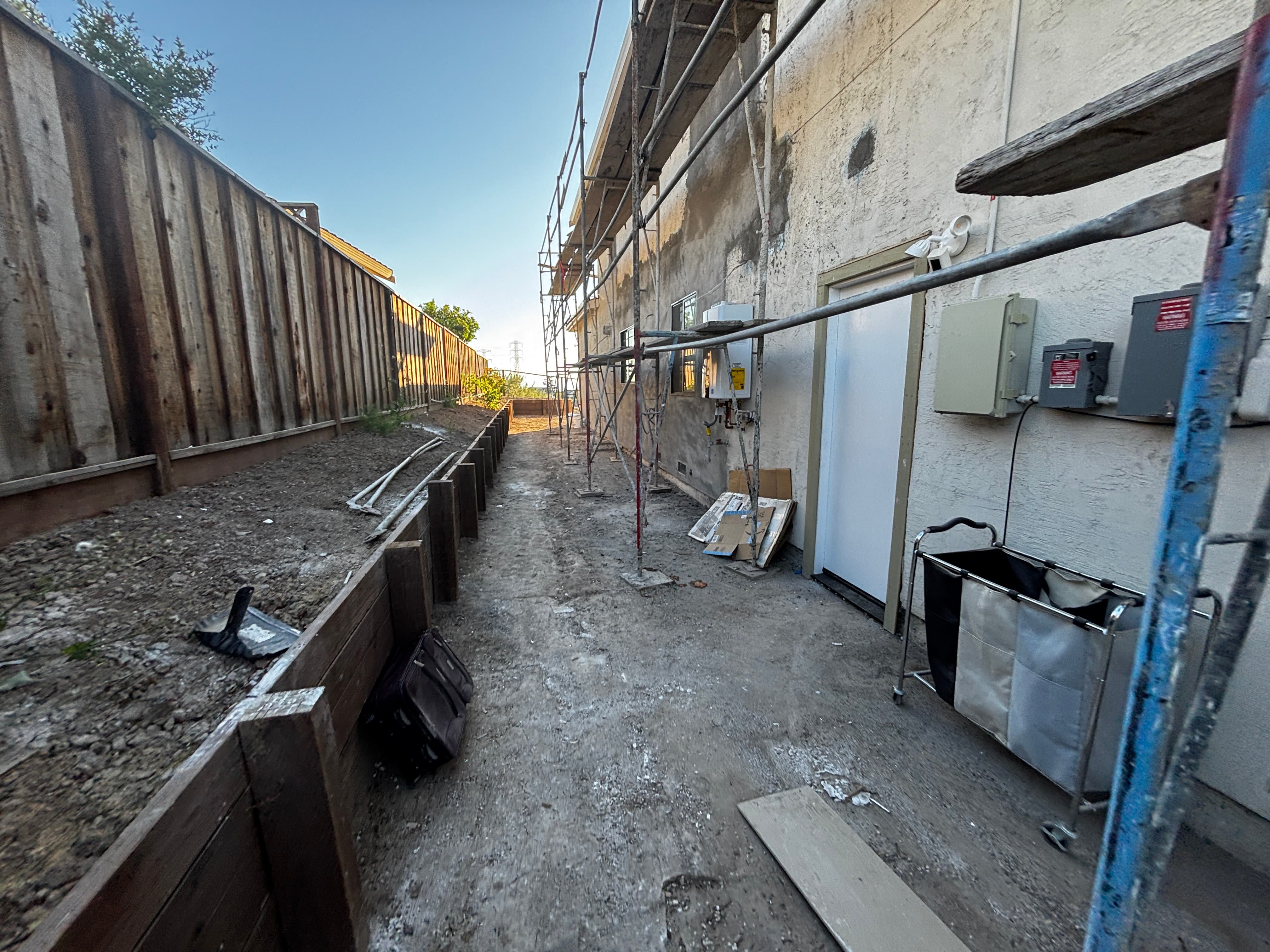

Current — 43601 Backyard slope
Backyard Slope
Current — 43601 Side yard
Side Yard

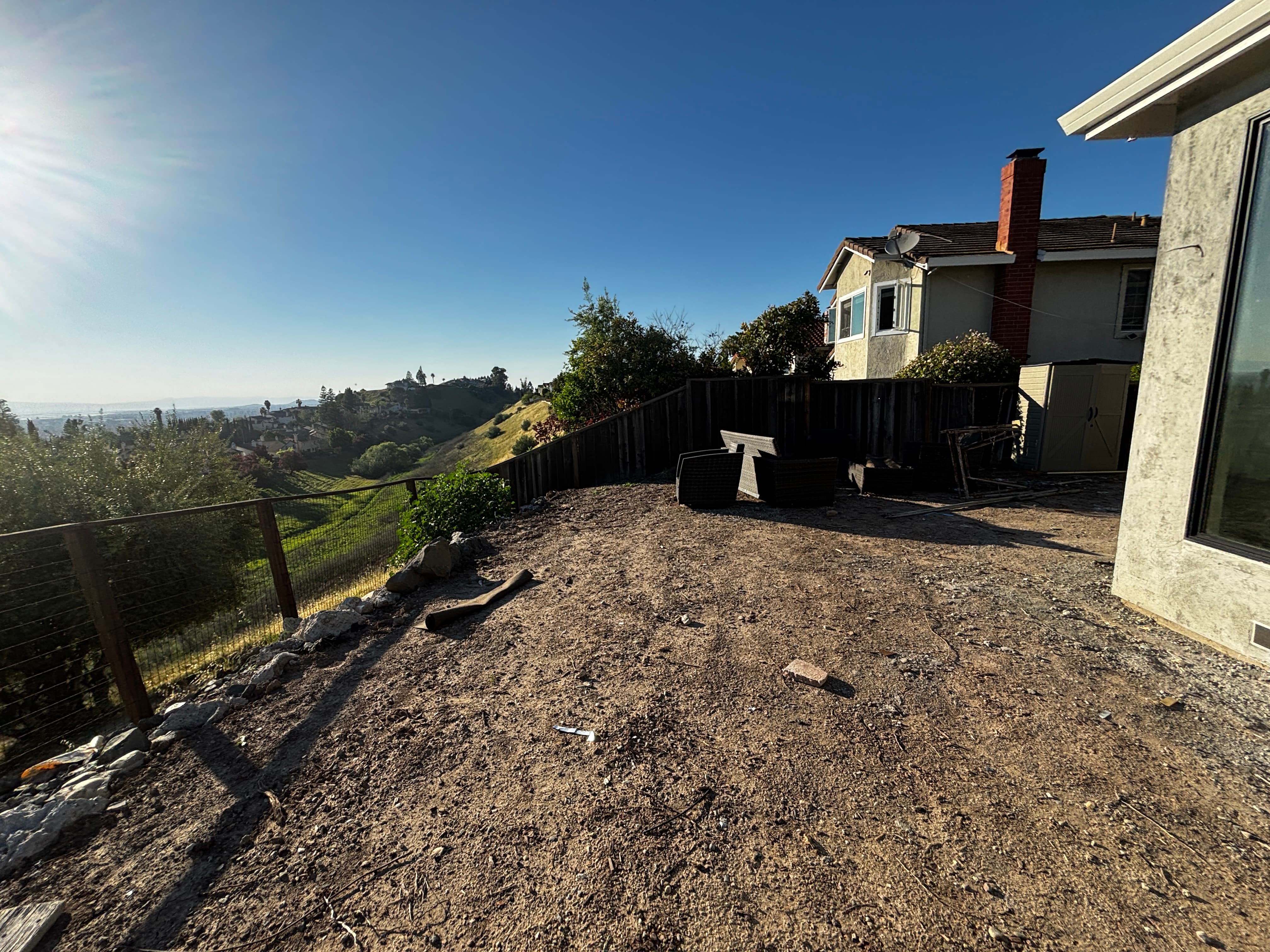

Current — 43601 Accordion door area
Accordion Door Area

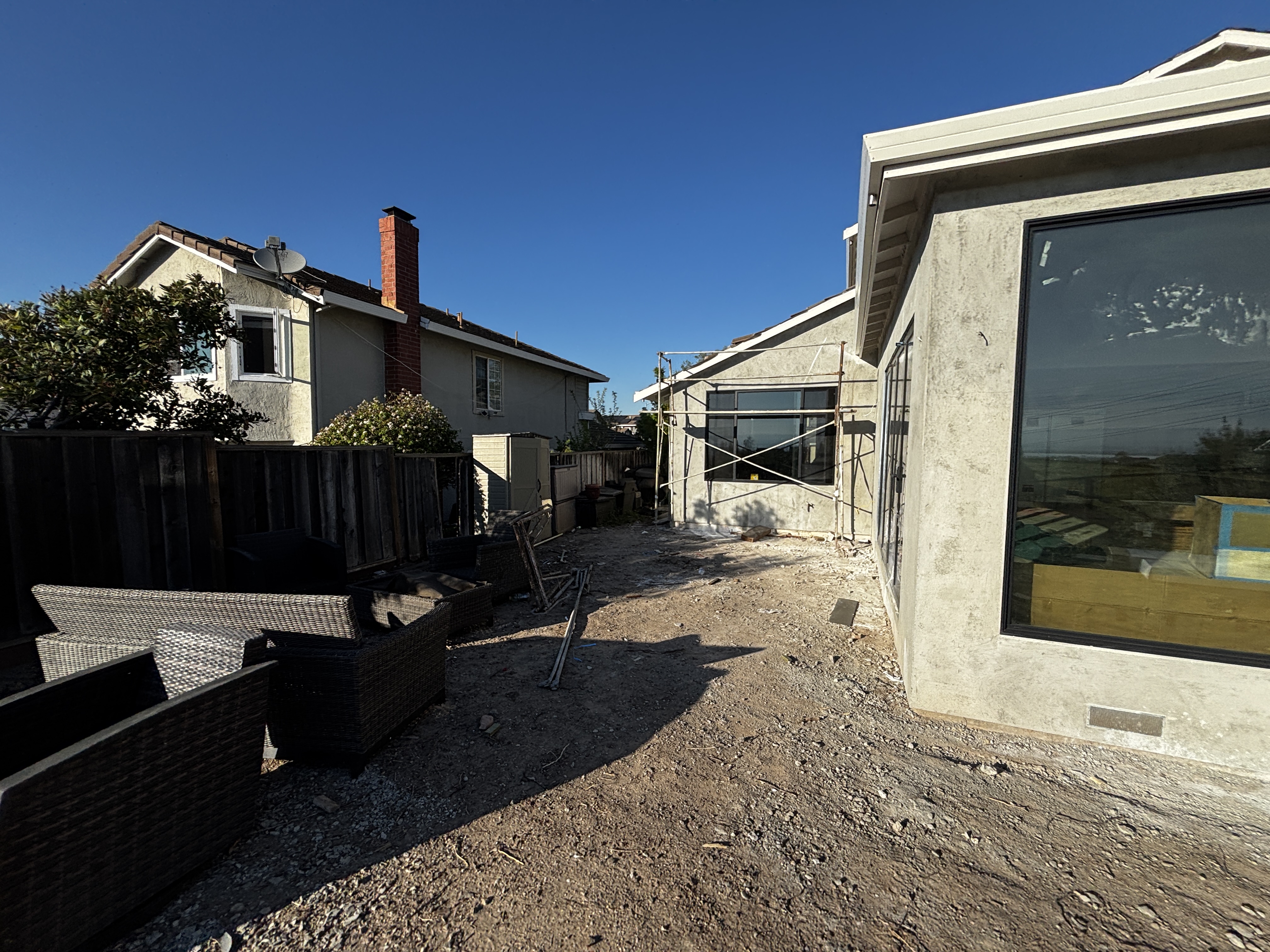

Current — 43601 Front entry steps
Front Entry Steps

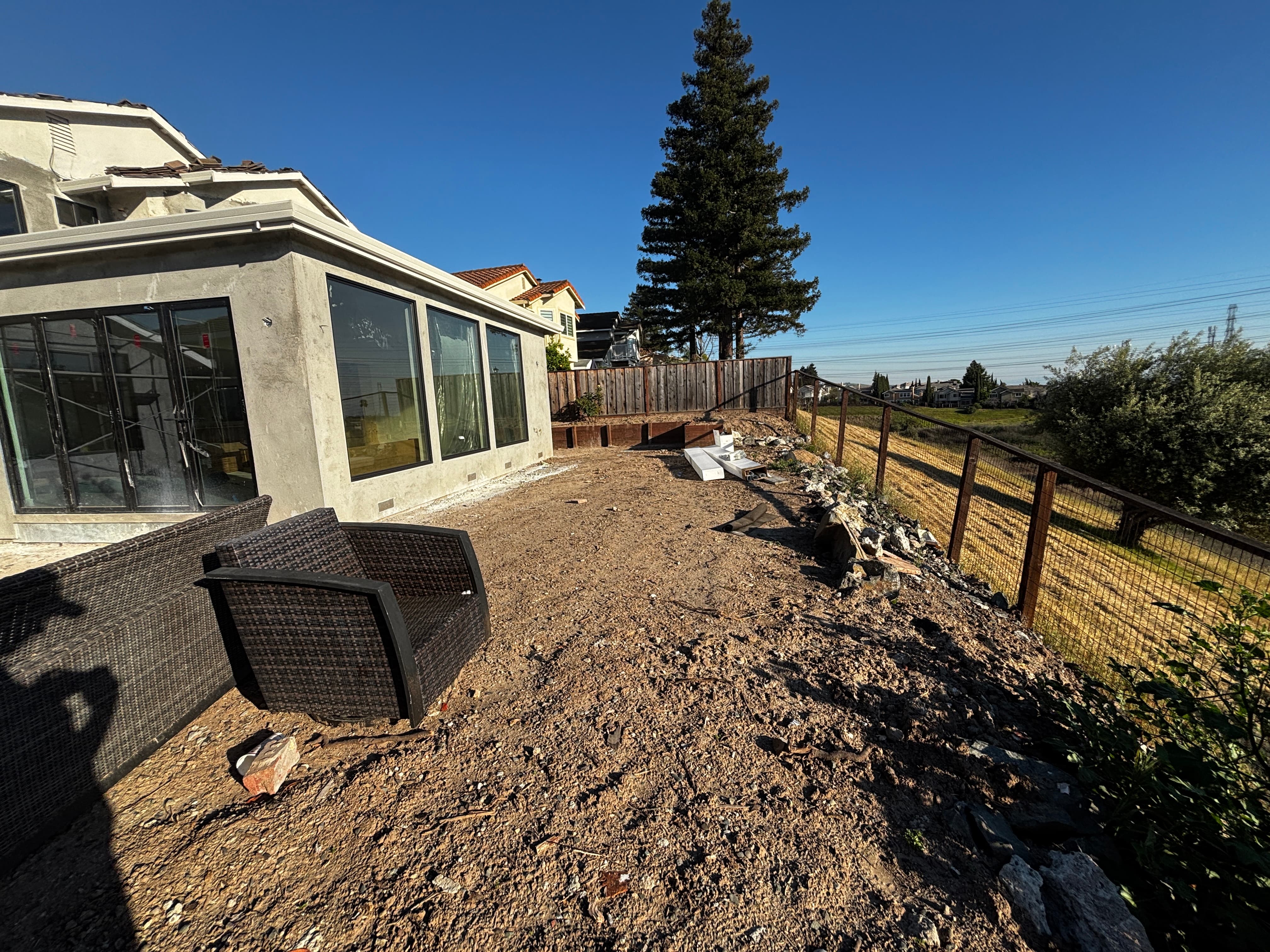

Current — 43601 Side storage area
Side Storage Area

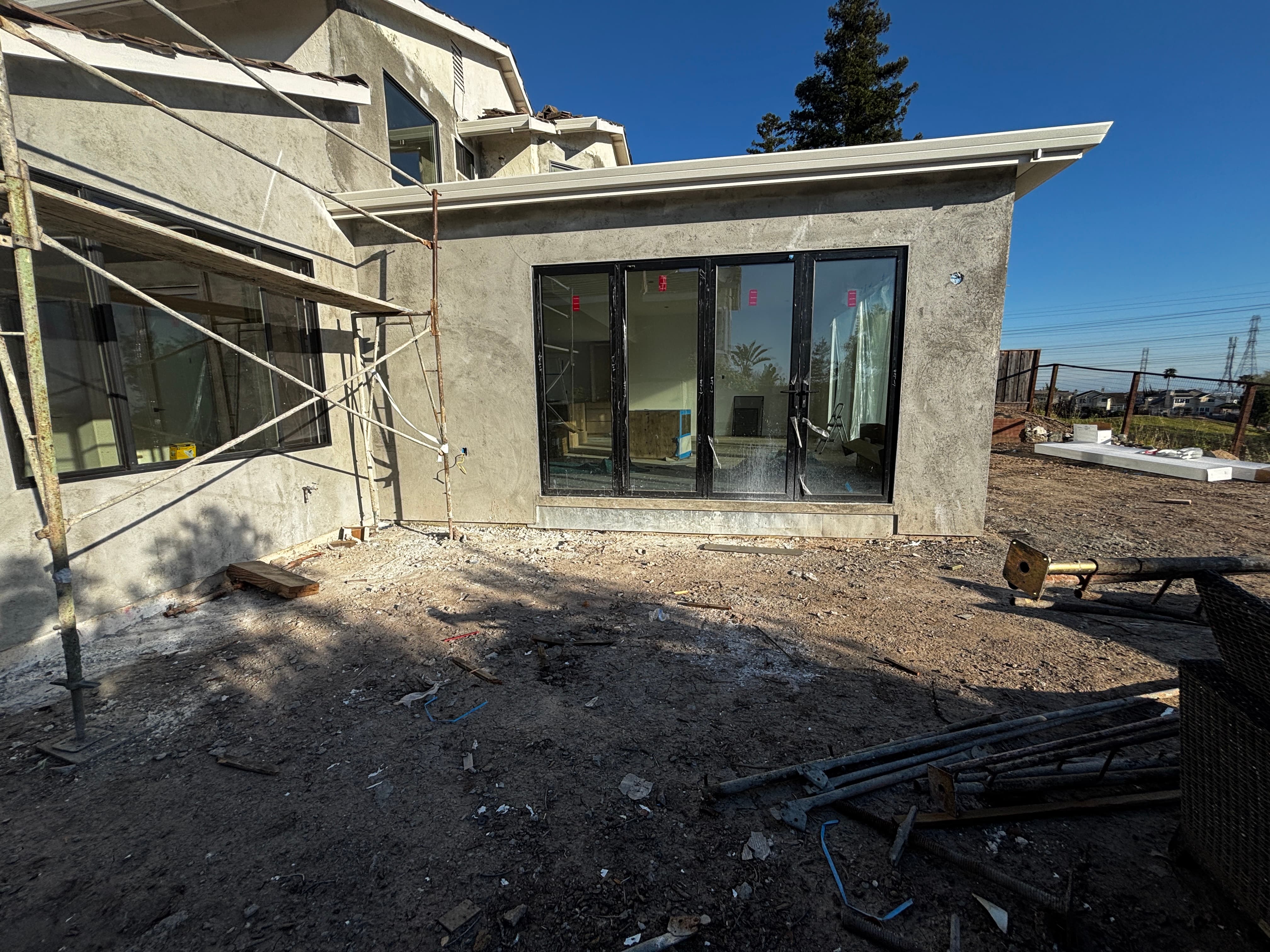

Current — 43601 Front yard
Front Yard
Project Scope
1
Front Yard
Demo concrete steps & walls, install pavers with bullnose steps, decorative rock, mow strip, and water feature plumbing
$9,153
2
Side Yard
5' wide Dimensions 12 paver paths on both sides with Graphite borders, decorative rock fill & weed barrier
$20,770
3
Retaining Walls & Steps
2' Steeple Crest structural retaining walls along slope with geo-grid, French drain, bullnose steps, baserock backfill
$28,239
4
Backyard Pavers & Rock
14'×22' elevated paver landing off accordion doors, full paver field with Scandina Grey DuraFusion, decorative rock accents
$36,280
5
Extras & Lighting
3/4" future utility pipe, TruScape LED hardscape step & wall lights, bronze path lights — all 2700K warm glow
$5,528
Design Vision

This design transforms every outdoor surface of the property — front yard, both side yards, and the entire backyard — into a cohesive, modern hardscape environment that matches the home's contemporary architecture.

The backyard anchors the design with a 14' × 22' elevated paver landing stepping directly off the accordion doors, creating a seamless indoor-outdoor transition at 16 inches above grade. Structural retaining walls along the hillside slope frame the space while managing drainage through an integrated French drain system, reinforced with geo-grid for long-term stability.

Out front, existing concrete gives way to clean Dimensions 12 pavers with a decorative semi-circular tree border and underground plumbing for a future water feature. Low-voltage TruScape lighting ties the entire property together with warm 2700K illumination along steps, walls, and pathways.

14' × 22' Elevated Landing Structural Retaining Walls Geo-Grid Reinforcement French Drain System Water Feature Plumbing Bullnose Steps Throughout Low-Voltage LED Lighting Decorative Rock Accents Front-to-Back Transformation Semi-Circular Tree Border
Materials & Specifications
Belgard Dimensions 12 Scandina Grey
Metropolitan Collection
Belgard Dimensions 12
Scandina Grey — DuraFusion
Random pattern, 3-piece system
6×12, 12×12, 12×18 × 2⅜"
View Spec Sheet →

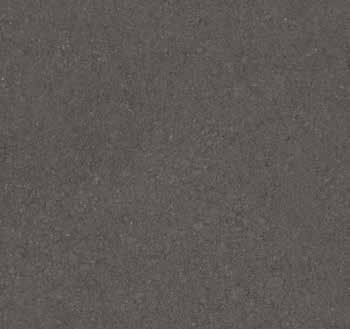

Belgard Marina Coping Graphite
Heritage Collection
Belgard Marina Coping
Graphite — 60mm Bullnose
Smooth surface, rounded edges
6 × 12 × 2⅜"
View Spec Sheet →
Belgard Steeple Crest Retaining Wall
Retaining Wall System
Belgard Steeple Crest
2' SRW with geo-grid
Segmental block system
French drain integration
View Spec Sheet →
TruScape Landscape Lighting
Landscape Lighting
TruScape LED Lighting
TS-A6000 Step & Wall Light
TS-B306-BRZ Path Light
Bronze, 12V, 2W, 2700K
View Spec Sheet →
Paver Installation Cross-Section

ICPI certified · 8 engineered layers · 25-year workmanship warranty

8
Polymeric Sand
Fill gaps with polymeric sand, compact to lock pavers in place.
PAVERS
7
Pavers
Lay Dimensions 12 Scandina Grey DuraFusion in random pattern. Custom saw cuts along perimeter.
6
Bedding Sand
Screed 1" of angular bedding sand across compacted base.
BASE ROCK
5
Base Material
Another 2" layer of Class II base rock, re-compact for stability.
4
Geo-Grid
Install geo-grid around perimeter so pavers move together as the earth moves.
BASE ROCK
3
Base Material
2" of Class II aggregate base, compacted for foundational stability.
2
Geotextile Fabric
Lay geo-tech fabric on compacted soil to assist with drainage and prevent weeds.
EXISTING SUBGRADE
1
Native Soil
Excavate to required depth (7" pedestrian, 9" vehicular) and compact native soil.
8Engineered Layers
ICPISpecification Compliant
25 YrWorkmanship Warranty
Every square foot built to last — from subsoil to surface.
Why Bayside

DIY / Handyman

Low cost, high risk. No engineering, no warranty, no project management. You coordinate everything yourself — and hope for the best.

Bayside Pavers

One accountable team from design through completion. Licensed crews, ICPI-spec installation, project management oversight, and full warranty protection — on budget, on time.

Big Contractors

Higher overhead, longer timelines, multiple subcontractors. Your project competes with larger commercial jobs for attention and scheduling priority.

Warranties & Insurance
25 Years
Paver Workmanship
Covers all installed pavers — patios, pathways, driveways — against installation defects including settling and breakage
1 Year
Retaining Walls & Lighting
Covers structural retaining wall and lighting workmanship. Materials backed by manufacturer warranty
Full
Liability Insurance
Licensed crews, project management oversight, and comprehensive liability coverage throughout construction
Bayside Pavers

Bayside Pavers Installation Guide

Learn more about our process, standards, and what to expect on build day.

View Installation Guide
Investment Breakdown
Backyard Pavers & Rock
$36,280
Retaining Walls & Steps
$28,239
Side Yard
$20,770
Front Yard
$9,153
Extras & Lighting
$5,528
Backyard Pavers & Rock
Retaining Walls & Steps
Side Yard
Front Yard
Extras & Lighting
Next Steps
1

Review & Approve

Review this proposal and the design renderings. Ask any questions — we're happy to walk through every detail.

2

Sign & Deposit

Sign the agreement and submit the $1,000 deposit to secure your spot on the build calendar.

3

Scheduling

Construction begins within 3–6 weeks of contract approval, subject to material and crew availability.

4

Build & Walkthrough

Our crew stays on your job daily until completion. Final walkthrough ensures every detail meets your expectations.

Exclusions
  • Plants and landscaping are not included in this bid
  • Client is responsible for water feature purchase and delivery — Bayside will connect to installed water line
  • Existing rock and planter beds in the front entryway remain as-is
  • Decorative rock material allowance: up to $150 per cubic yard — overages added to project total
  • 10% discount is contingent upon payment via cash or check
  • Financing available: 11.99% APR for 60 months — est. $2,197.12/mo
