Design Proposal — 39622 Benavente Ave, Fremont, CA
Tim McMullen
Tim McMullen
Designer & Project Consultant · DRE #02016832
39622 Benavente Ave — Design Rendering
Front & Back Yard Transformation

39622 Benavente Ave

Fremont, CA 94539
Designed: April 9, 2026
Scope: Front Yard, Backyard & Fence
$54,079.00
3D Design Renderings
Rendering — Aerial overview
Rendering — Front yard paver path and garden
Rendering — Backyard deck and sod
Rendering — Fence and privacy lattice
Project Video Walkthrough
Current Condition

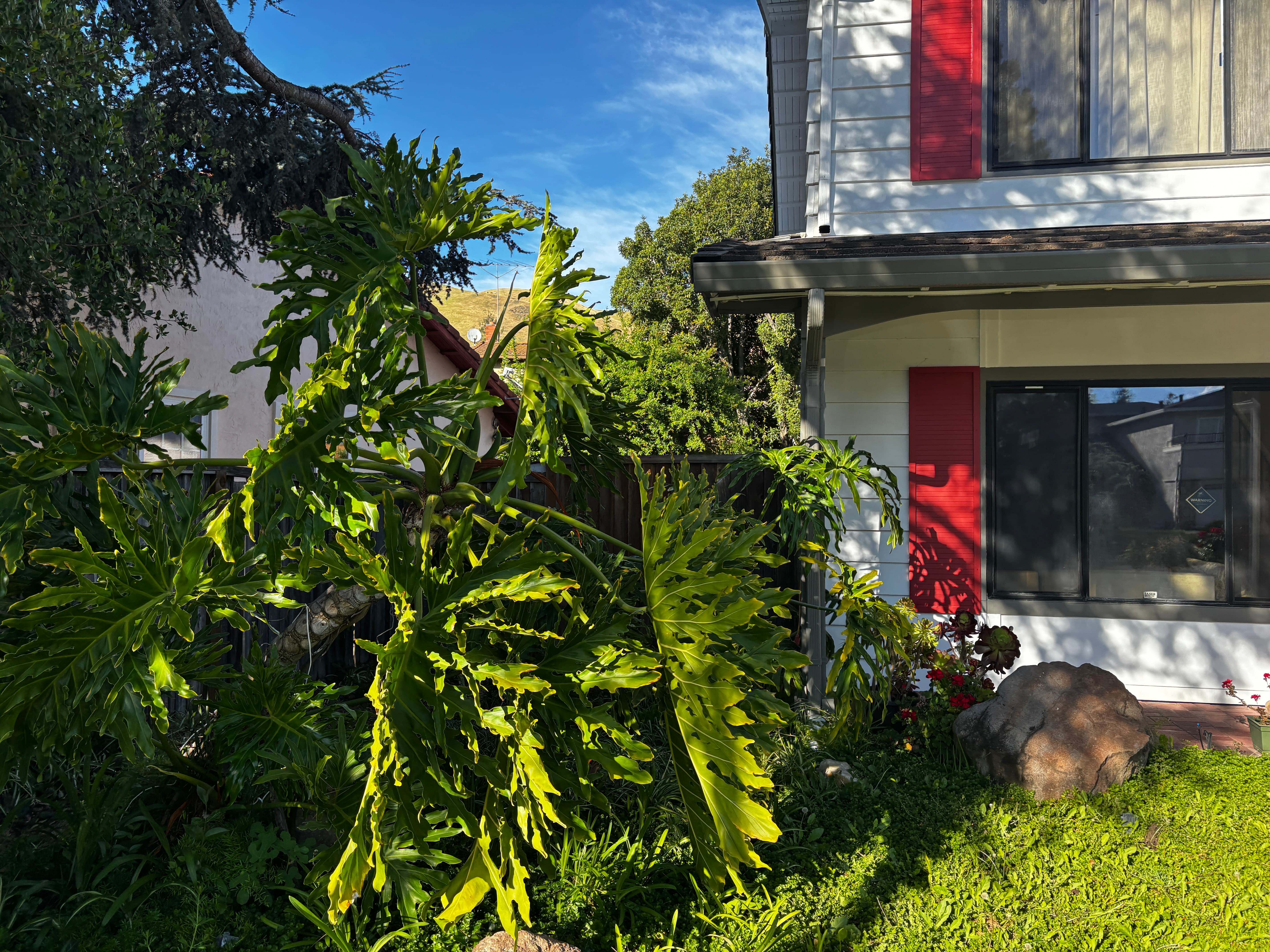

Current — Backyard deck and fence

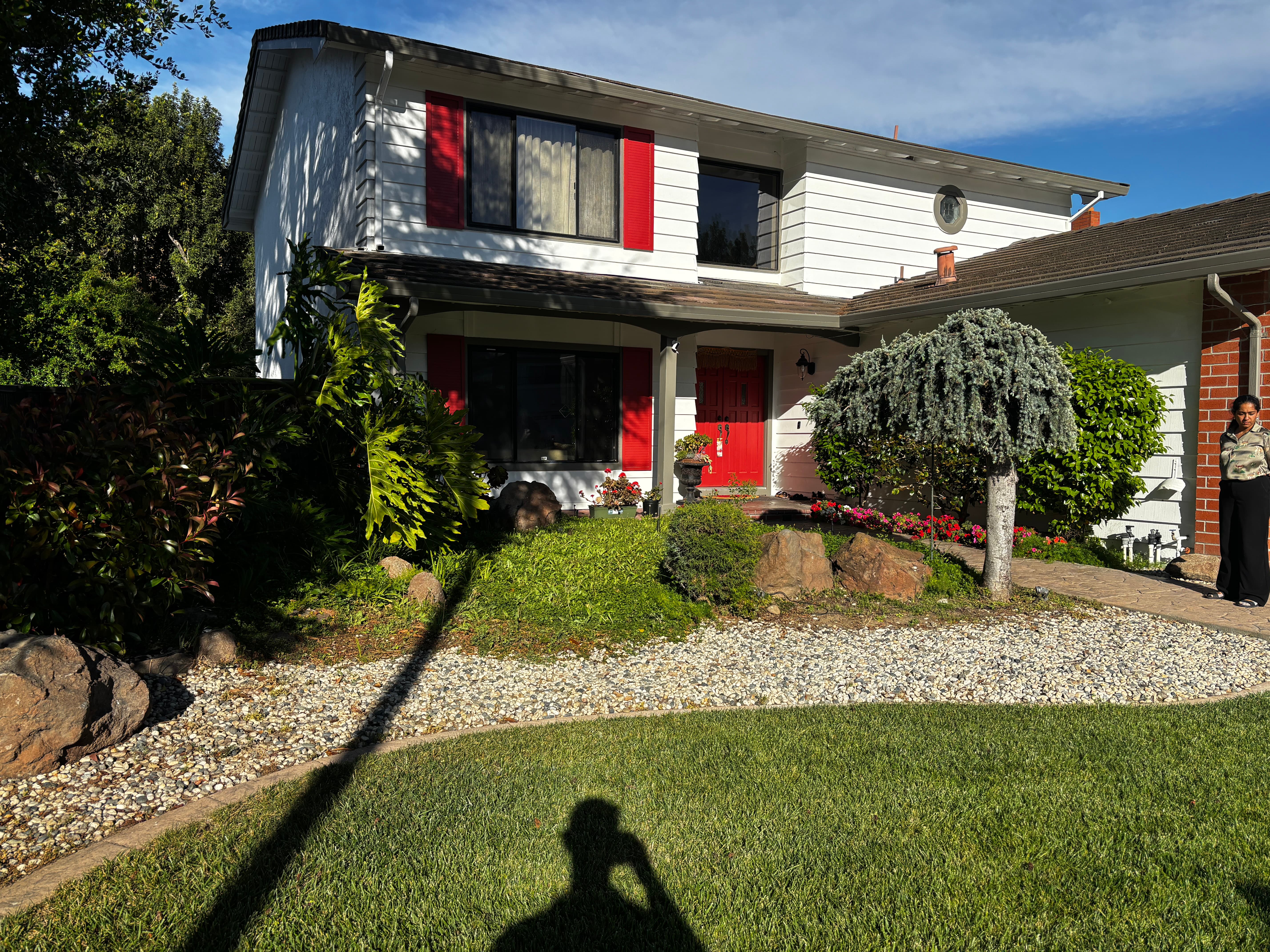

Current — Rear yard view

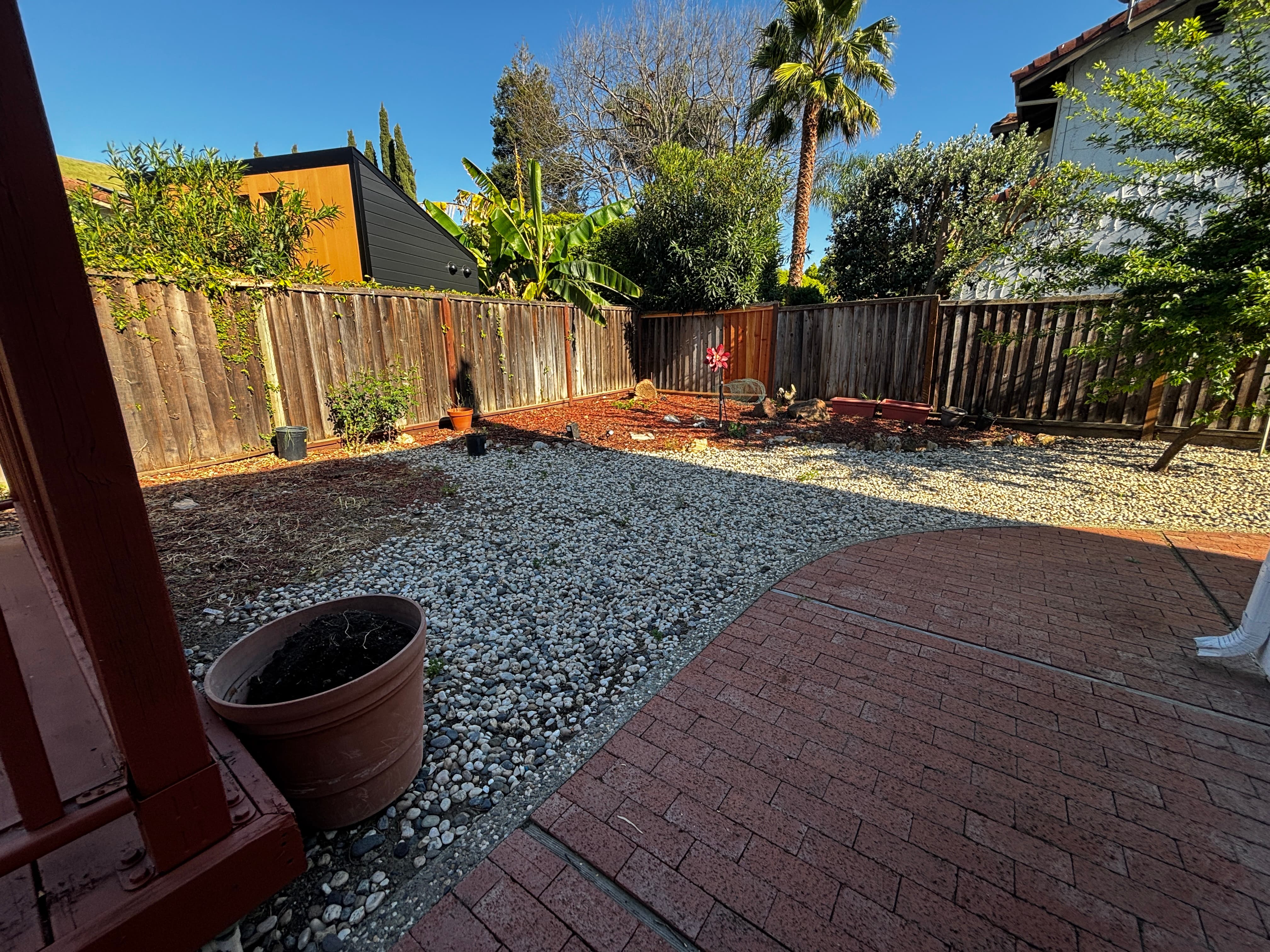

Current — Backyard post-deck removal
Current — Front yard garden and boulders

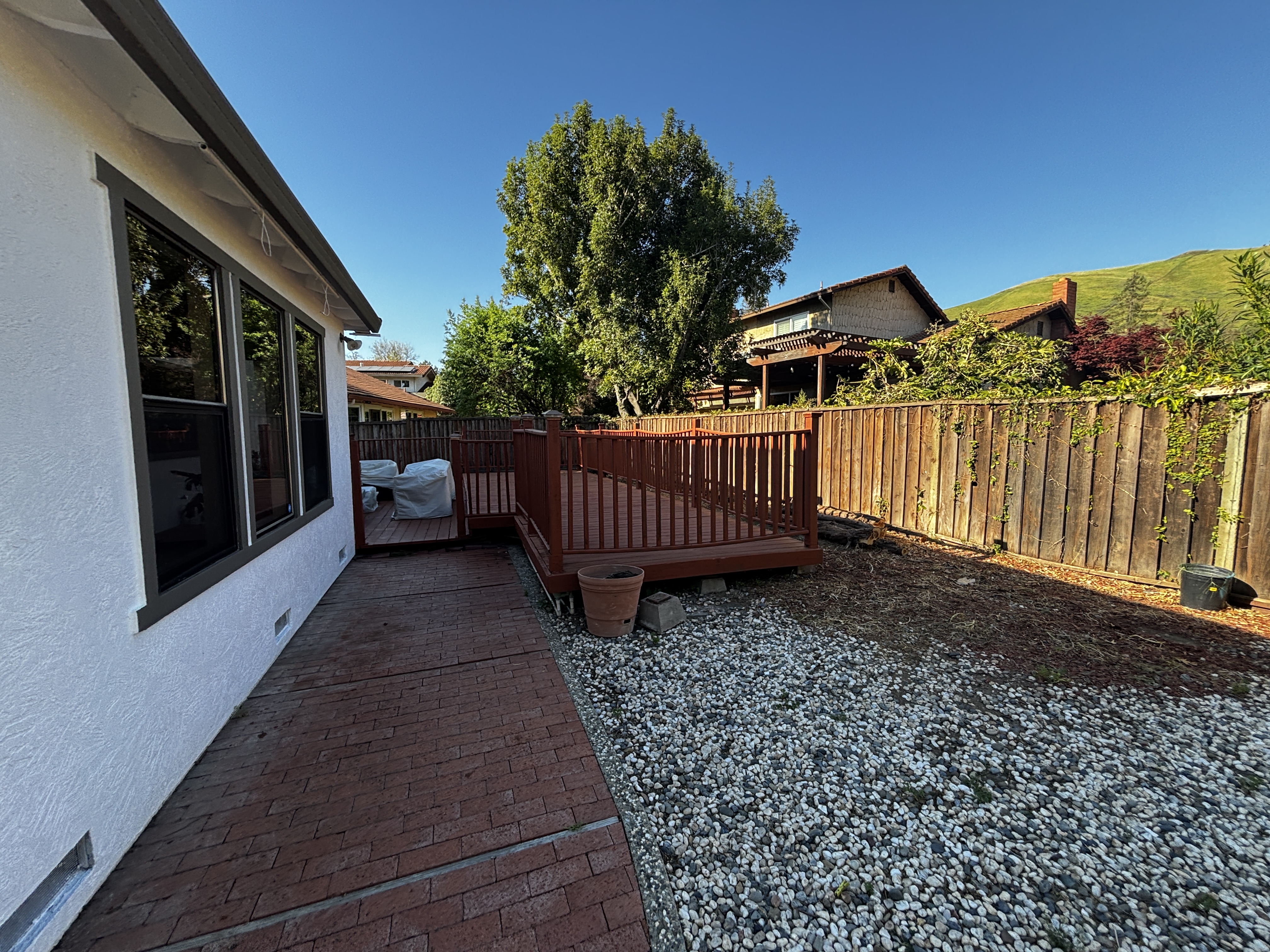

Current — Front yard fern tree and walkway area

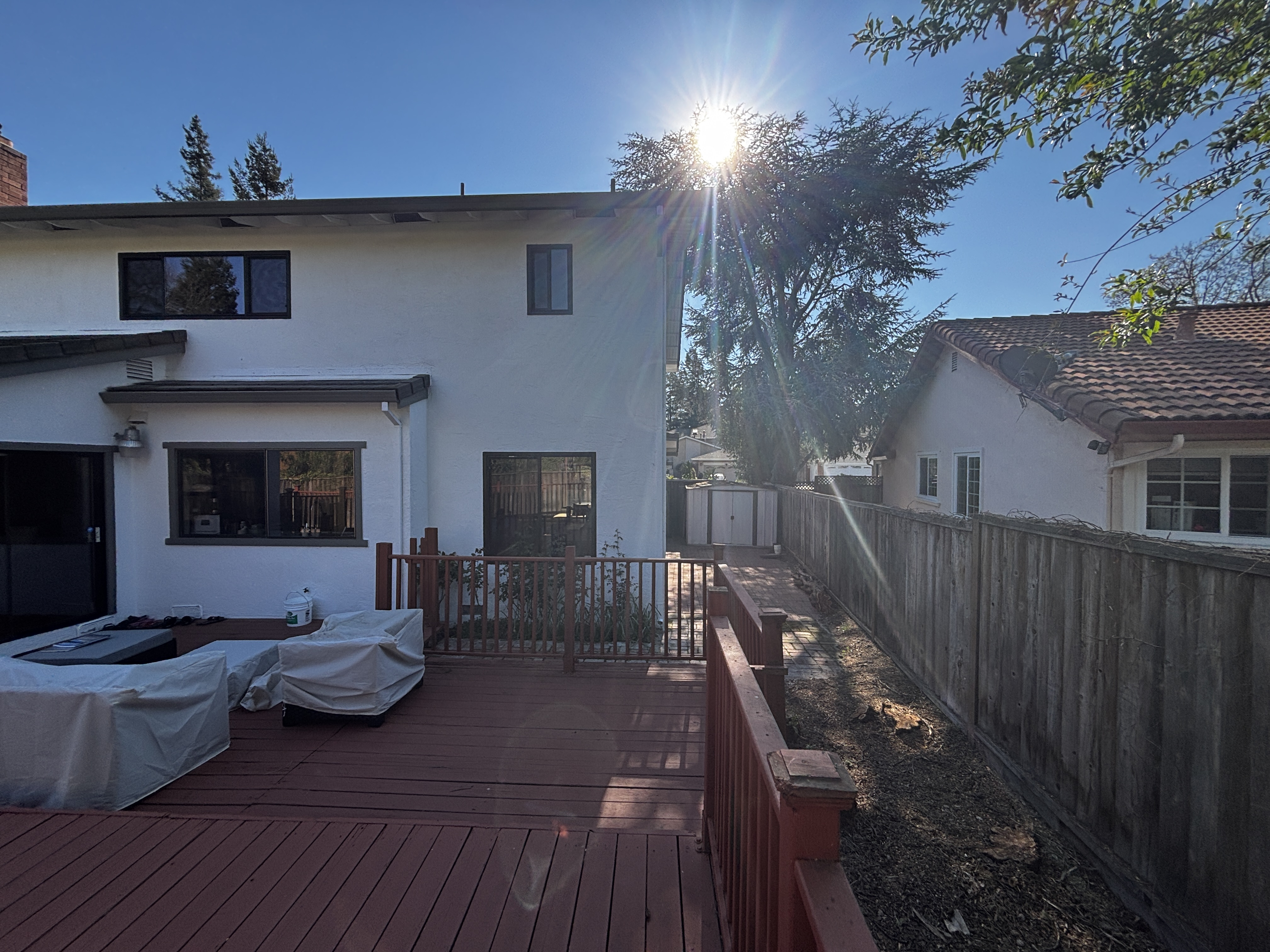

Current — Left side fence
Project Scope
1
Demo & Site Prep
Remove center green front garden, fern tree, and left-side fence. Clear walkway path area, grade front yard, and relocate white rock from front to backyard for use along back fence.
2
Front Yard Paver Path
Install 3.5ft-wide Belgard Mega-Arbel walkway in Toscana off the driveway to the new left-side gate. ICPI excavation, base, bedding sand, and concrete edge restraint throughout.
3
Garden Feature & Lighting
Install Belgard Catalina Grana pavers in Toscana (Runner pattern) and Catalina Toscana edger border to frame the feature garden section. Agave/succulent of choice. Vista LED up lights + Volt 100W transformer with timer.
4
Redwood Fence & Gate
Install 6ft Good Neighbor redwood fence along left side with a 4ft-wide pedestrian gate. Posts set in concrete footings at 6–8ft intervals. Heavy-duty galvanized hinges and latch. Natural finish.
5
Trex Platform Deck
Construct a 22'×15'×6" single-step Trex Enhance platform deck off the back door. Client-choice color. Includes all footings, posts, beams, boards, and fascia. Full materials and labor.
6
Backyard Sod & Privacy
Install large sod/grass area with irrigation valve, sprinkler head, and Belgard Catalina Toscana edger border. White rock dressed along back fence. 2ft lattice added to back and left-side fence for privacy.
Design Vision

This design transforms a property at transition — the old deck already gone, the front yard overgrown and disconnected — into a cohesive outdoor environment with a clear sense of arrival, privacy, and backyard living.

At the front, the fern tree and center garden give way to a flowing 3.5ft-wide Mega-Arbel path in Toscana that leads from the driveway to a new 6ft redwood gate. The path's irregular flagstone-look creates organic movement through the yard, while a framed garden section with Catalina Grana pavers, Agave, and Vista LED up lights turns the corner into a curated focal point with nighttime drama.

In the backyard, a 22'×15' Trex Enhance platform deck anchors the space off the back door — low-profile, clean, and built to last. A wide sod field extends alongside it, edged cleanly in Catalina Toscana, with the property's own white rock repurposed to dress the garden beds along the back fence. Two feet of privacy lattice along the back and left fences rounds out the transformation, adding screening without sacrificing light or air.

Mega-Arbel Toscana Path Catalina Grana Toscana Garden Pavers Catalina Toscana Edger Border 22×15 Trex Enhance Platform Deck 6ft Redwood Good Neighbor Fence 4ft Redwood Gate Vista LED Up Lights Volt 100W Transformer + Timer Sod + Irrigation White Rock Repurposed On-Site 2ft Privacy Lattice
Materials & Specifications
Belgard Mega-Arbel Toscana
Natural Collection
Belgard Mega-Arbel
Toscana — 60MM
Irregular flagstone look, no-repeat pattern
15⅜" × 21" × 2⅜"
Front yard walkway path
Spec Sheet →
Belgard Catalina Grana Toscana
Classic Collection · Edger & Border Only
Belgard Catalina Grana
Toscana — Runner Pattern
Catalina 6"×9" Edger in Toscana
Concrete base set, stable long-term
Garden feature section + borders
Spec Sheet →
Trex Enhance Decking
Trex Enhance® Series
Trex Enhance Deck
Client-choice color
95%+ recycled content, integrated shell
22' × 15' × 6" platform off back door
Footings, posts, beams, fascia included
Spec Sheet →
Paver Installation Cross-Section

ICPI certified · 8 engineered layers · 25-year workmanship warranty

8
Polymeric Sand
Fill joints with polymeric sand, compact to lock pavers in place.
PAVERS
7
Pavers
Lay Mega-Arbel in interlocking pattern. Custom saw cuts along perimeter.
6
Bedding Sand
Screed 1" of angular bedding sand across compacted base.
BASE ROCK
5
Base Material
Additional 2" layer of Class II base rock, re-compact for stability.
4
Geo-Grid
Install geo-grid around perimeter so pavers move together as the earth moves.
BASE ROCK
3
Base Material
2" of Class II aggregate base, compacted for foundational stability.
2
Geotextile Fabric
Lay geo-tech fabric on compacted soil to assist drainage and prevent weeds.
EXISTING SUBGRADE
1
Native Soil
Excavate to required depth (7" pedestrian) and compact native soil.
8Engineered Layers
ICPISpecification Compliant
25 YrWorkmanship Warranty
Every square foot built to last — from subsoil to surface.
Why Bayside

DIY / Handyman

Low cost, high risk. No engineering, no warranty, no project management. You coordinate everything yourself — and hope for the best.

Bayside Pavers

One accountable team from design through completion. Licensed crews, ICPI-spec installation, project management oversight, and full warranty protection — on budget, on time.

Big Contractors

Higher overhead, longer timelines, multiple subcontractors. Your project competes with larger commercial jobs for attention and scheduling priority.

Warranties & Insurance
25 Years
Paver Workmanship
Covers all installed pavers — front yard path, garden section, and edger borders — against installation defects including settling and breakage
1 Year
Deck, Sod & Lighting
Covers Trex deck construction, sod installation workmanship, and landscape lighting installation. Materials backed by manufacturer warranty
Full
Liability Insurance
Licensed crews, project management oversight, and comprehensive liability coverage throughout construction
Bayside Pavers

Bayside Pavers Installation Guide

Learn more about our process, standards, and what to expect on build day.

View Installation Guide
Investment Breakdown
Trex Platform Deck
Largest scope
Front Paver Path
Major element
Redwood Fence & Gate
Privacy & entry
Backyard Sod & Edger
Lawn & borders
Garden Feature & Lights
Curb appeal
Total Investment
$54,079.00
10% discount applied for cash/check payment
Next Steps
1

Review & Approve

Review this proposal and the design renderings. Ask any questions — we're happy to walk through every detail.

2

Sign & Deposit

Sign the agreement and submit the $1,000 deposit to secure your spot on the build calendar.

3

Scheduling

Construction begins within 3–6 weeks of contract approval, subject to material and crew availability.

4

Build & Walkthrough

Our crew stays on your job daily until completion. Final walkthrough ensures every detail meets your expectations.

Exclusions
  • Stumps surrounding backyard to remain in place — not included in scope
  • Brick side and rear path stays in place — no demo or replacement
  • Deck steps not included — 6" platform height is the step
  • No lighting on deck fascia or side boards
  • Plants, planting, and landscaping beyond specified Agave/succulent not included
  • 10% discount contingent upon payment via cash or check
  • Credit card payments subject to an additional 3% transaction fee
  • Down payment: $1,000 or 10% of contract price, whichever is less
  • HOA approval, permits, and associated fees are the client's responsibility
